Accessory: Nozzle Showerhead, Chrome-Plated Brass
Acorn ConTrols® can provide an assortment of optional accessories along with the SV16 shower mixing valve and other shower valves.

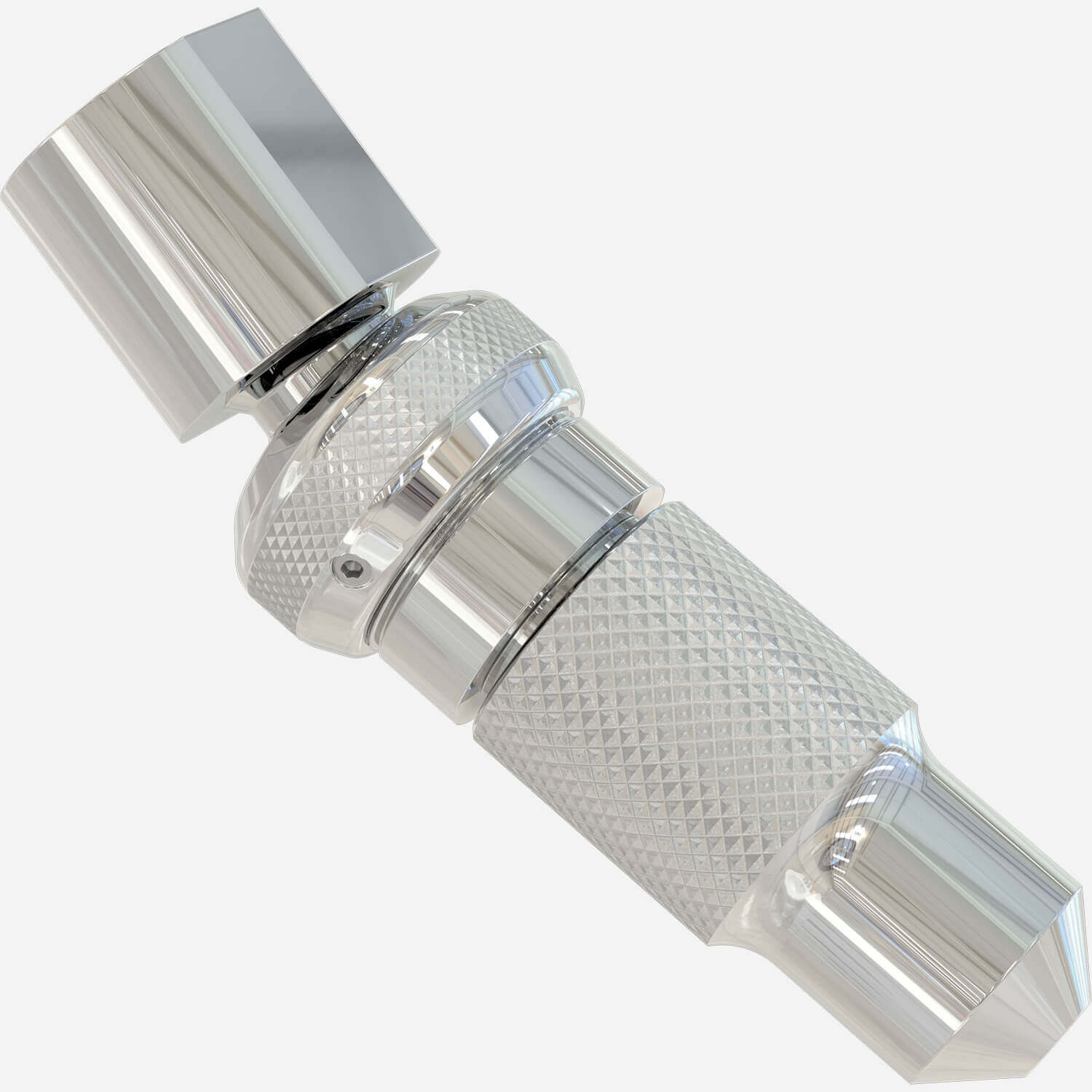

This option provides an Acorn Logan Wizard ball-joint nozzle showerhead. The showerhead is brass with a high polished and knurled chrome finish. The spray pattern is adjustable by the user turning the nozzle for a coarse stream to a fine mist. The nozzle is compliant with ANSI A112.18.1M. Nozzle measure 1" (25 mm) in diameter and 4-3/8" (111 mm).
The showerhead is available rated with a flow of 1.5 gallons (5.7 liters) per minute. This flow rate is compliant with California conservation regulations.
Also available is a showerhead rated with a flow of 2.5 gallons (9.5 liters) per minute. Since July 1, 2018, due to water conservation regulations, this version has no longer been available for use in the state of California.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Install Guideline for ConTrols SV16 Shower Valve Accessories including Options -CSH, -ESH, -LSH, -NSH, -SH, -BA, -HV, -TUB, -HHC15, -HHW15, -HHSH, -HHSH, -HHVH, -GR, -HHGB, -HHWB, -DIV, -IDIV, 1108CAP, -EVB, -IVB, -HHSE, -QD and variations. | 0 | 583 KB | ||
| | Accessory for SV16 Valve: Chrome-Plated Brass Shower Nozzle | 0 | 243 KB | ||
| | Comprised of 28 divisions spanning diverse markets, Morris Group International designs, engineers, and manufactures products with precision to meet today’s construction and installation trends. | 0 | 7 MB | ||
| | See how Acorn ConTrols® valves and systems work together to regulate the water flow through an entire building. | 0 | 1 MB | ||
| | Acorn ConTrols® manufactures and distributes a complete line of thermostatic mixing, balancing, pressure regulating, and check valves to handle water temperature, pressure, and flow in a building. | 0 | 5 MB | ||
| | Detailed specs and descriptions for the complete Acorn ConTrols® line of mixing, tempering, balancing, check, and pressure reducing valves. | 0 | 4 MB |
Specifications
| Material | Chrome Plated Brass |
Models
NSH15 | 1.5 gallons (5.7 liters) per minute (req in California) NSH25 | 2.5 gallons (9.5 liters) per minute
Details
Specify: NSH15 | 1.5 gpm (req in California); NSH25 | 2.5 gpm
